Bolt Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the bolts in the order of (1), (2) and (3).

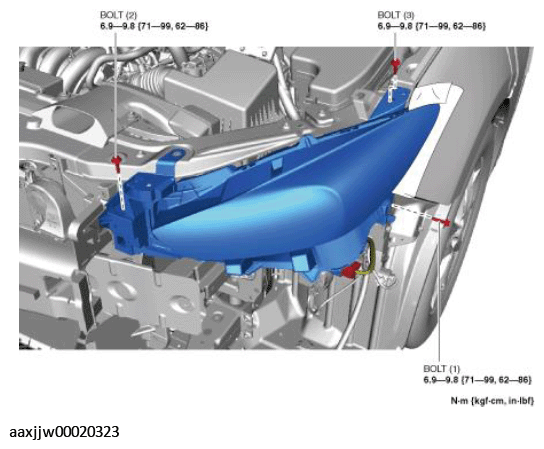

Fig 1: Front Combination Light Installation

Courtesy of MAZDA MOTORS CORP.
