Front Brake (Disc) Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
World manufacturer identification "JM1"

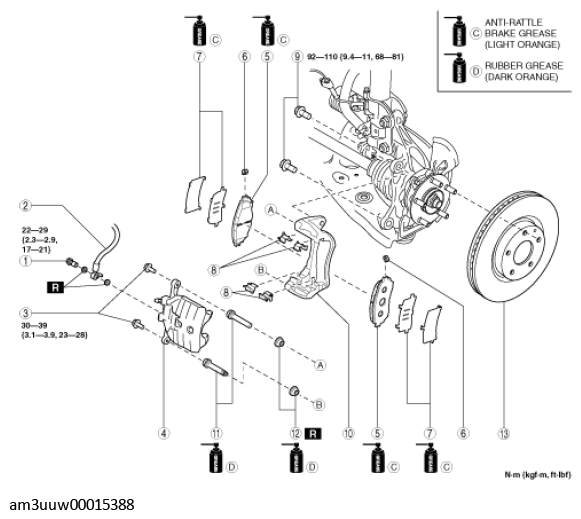

Fig 1: Exploded View Of Front Brake (Disc) With Torque Specification - World Manufacturer Identification "JM1"Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Bolt 2 Brake hose 3 Bolt 4 Caliper
(See Caliper installation Note .)5 Disc pad 6 Wear indicator 7 Shim 8 Guide plate
(See Guide Plate Installation Note .)9 Bolt 10 Mounting support 11 Slide pin 12 Bushing 13 Dust boot 14 Disc plate World manufacturer identification "3MZ"

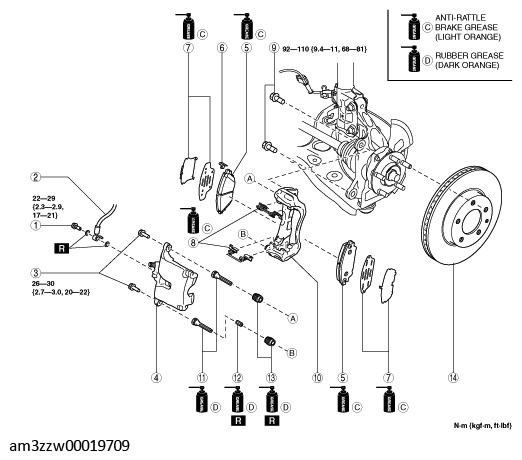

Fig 2: Exploded View Of Front Brake (Disc) With Torque Specification - World Manufacturer Identification "3MZ"Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Bolt 2 Brake hose 3 Bolt 4 Caliper
(See Caliper installation Note .)5 Disc pad 6 Wear indicator 7 Shim 8 Guide plate 9 Bolt 10 Mounting support 11 Slide pin 12 Dust boot 13 Disc plate
