Relay And Fuse Block Middle Cover Disassembly/Assembly

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

Fig 1: Identifying Relay And Fuse Block Middle Cover
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of arrow (1) shown in the figure, and pull out the relay and fuse block bracket No. 1 in the direction of arrow (2) shown in the figure to detach the relay and fuse block middle cover tab from the relay and fuse block bracket No. 1.
Detach all the relay and fuse block middle cover tabs from the relay and fuse block bracket No. 1 and remove the relay and fuse block bracket No. 1 from the relay and fuse block middle cover.
Insert a flathead screwdriver into the service hole in the position shown in the figure.

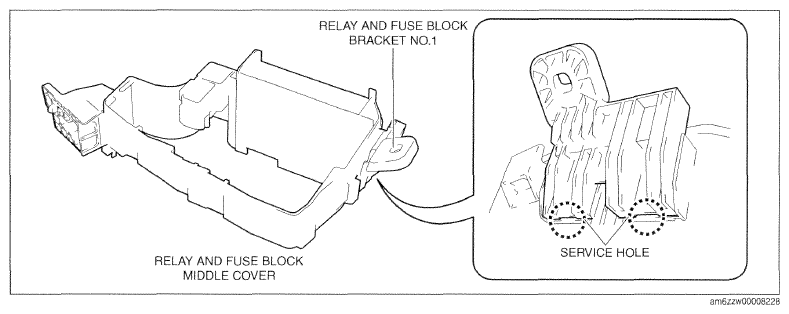

Fig 2: Inserting Flathead Screwdriver Into Service Hole
Courtesy of MAZDA MOTORS CORP.

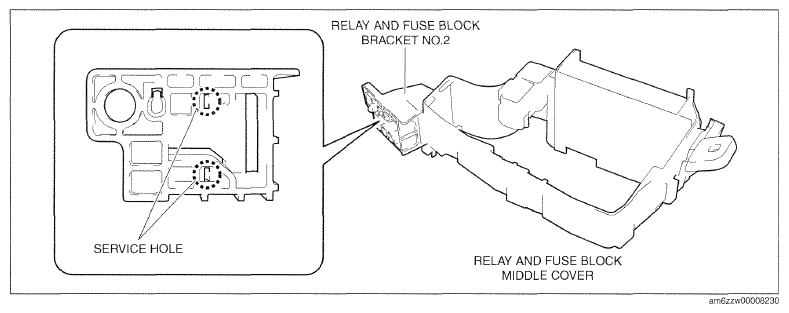

Fig 3: Identifying Relay And Fuse Block Middle Cover Tabs Service Hole
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of arrow (3) shown in the figure, and pull out the relay and fuse block bracket No. 2 in the direction of arrow (4) shown in the figure to detach the relay and fuse block middle cover tab from the relay and fuse block bracket No. 2.
Remove the relay and fuse block bracket No. 2.
Assemble in the reverse order of disassembly.

Fig 4: Removing Relay And Fuse Block Bracket No. 2
Courtesy of MAZDA MOTORS CORP.
