Relay And Fuse Block Removal/Installation: Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull the wiring harness in the direction of the arrow (2) while pressing the stopper to detach the relay or fuse terminal from the stopper.
    Fig 1: Pressing Stopper To Detach Relay And Fuse Terminal From Stopper
    G09788471Courtesy of MAZDA MOTORS CORP.
  2. Relocate all relay and fuse terminals to the new relay and fuse block.
    CAUTION:
    • If terminals are installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the relay and fuse block, line up the relay and fuse blocks of old and news parts and always verify each of the wiring harnesses in the wiring diagram so that the installation positions are correct.
    • A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.
    Fig 2: Identifying Relay And Fuse Block
    G09788472Courtesy of MAZDA MOTORS CORP.
  3. Install the ground.
  4. Install the bolt.
    Fig 3: Relay And Fuse Block Bolts With Torque Specifications
    G09788473Courtesy of MAZDA MOTORS CORP.
  5. Move the relay and fuse block middle cover in the direction of arrow (3) shown in the figure and insert the relay and fuse block tab into the relay and fuse block middle cover.

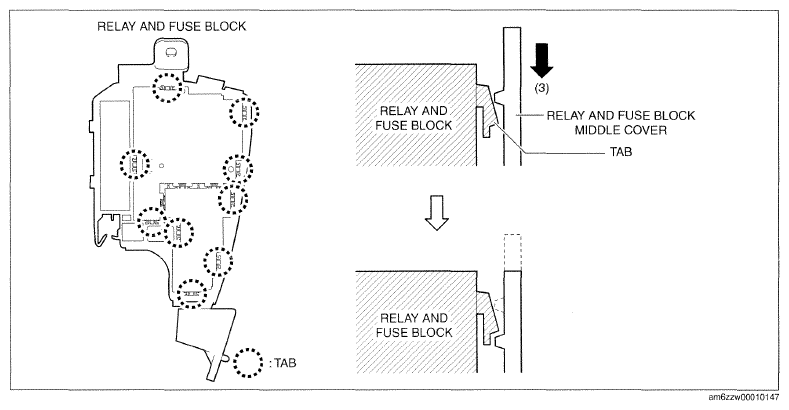

    Fig 4: Moving Relay And Fuse Block Middle Cover
    G09788474Courtesy of MAZDA MOTORS CORP.
  6. Insert all the relay and fuse block tabs into the relay and fuse block middle cover and install the relay and fuse block middle cover.
  7. Insert the front wiring harness connector into the relay and fuse block middle cover.
    Fig 5: Identifying Front Wiring Harness Connector
    G09788475Courtesy of MAZDA MOTORS CORP.
  8. Move the front wiring harness connector in the direction of arrow (4) shown in the figure to engage the front wiring harness connector tab with the relay and fuse block middle cover.

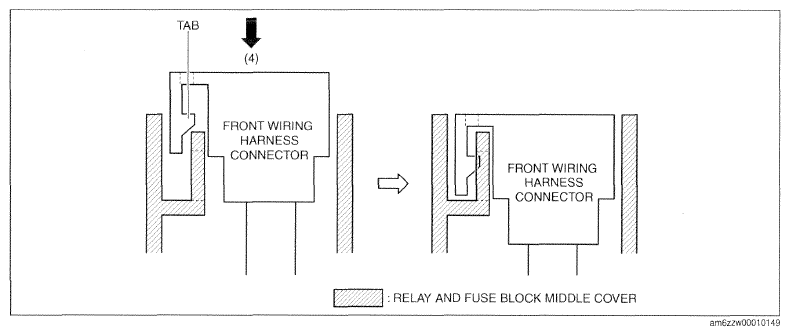

    Fig 6: Moving Front Wiring Harness Connector
    G09788476Courtesy of MAZDA MOTORS CORP.
  9. Install all the front wiring harness connectors to the relay and fuse block middle cover.
  10. Insert a flathead screwdriver into the gap between relay and fuse block lower covers No. 1 and 2 shown in the figure.
    NOTE:
    • When installing the relay and fuse block lower cover to the relay and fuse block middle cover, the wiring harness could get caught between the relay and fuse block middle cover and the relay and fuse block lower cover resulting in open or short circuit in the wiring harness. When installing the relay and fuse block lower cover, disassemble the relay and fuse block lower cover and install one at a time.

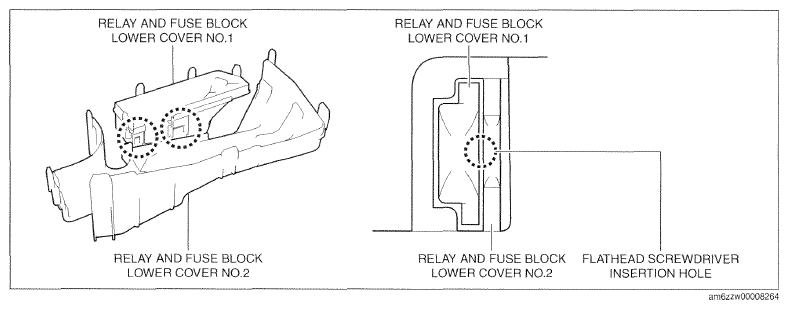

    Fig 7: Identifying Relay And Fuse Block Middle Cover No. 1
    G09788477Courtesy of MAZDA MOTORS CORP.
  11. Move the flathead screwdriver in the direction of the arrow (5) shown in the figure, and pull up relay and fuse block lower cover No. 1 in the direction of the arrow (6) shown in the figure to detach the relay and fuse block lower cover No. 1 tab from relay and fuse block lower cover No. 2.
  12. Detach all the relay and fuse block lower cover No. 1 tabs from relay and fuse block lower cover No. 2, and assemble the relay and fuse block lower cover.
  13. Move the relay and fuse block lower cover in the direction of arrow (7) shown in the figure and insert the relay and fuse block middle cover tab into the relay and fuse block lower cover.
    Fig 8: Pulling Up Relay And Fuse Block Lower Cover No. 1
    G09788478Courtesy of MAZDA MOTORS CORP.

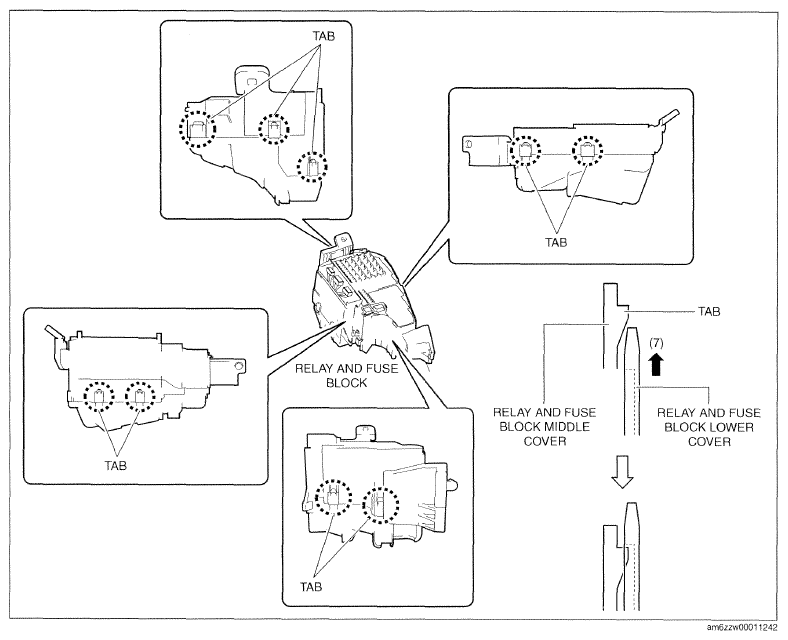

    Fig 9: Moving Relay And Fuse Block Lower Cover
    G09788479Courtesy of MAZDA MOTORS CORP.
  14. Insert all the relay and fuse block middle cover tabs into the relay and fuse block lower cover and install the relay and fuse block lower cover.
  15. Install the wiring harness clip to the relay and fuse block lower cover.
    Fig 10: Installing Wiring Harness Clip To Relay And Fuse Block Lower Cover
    G09788480Courtesy of MAZDA MOTORS CORP.
  16. Install the bands shown in the figure.
    Fig 11: Identifying Relay And Fuse Block Bands
    G09788461Courtesy of MAZDA MOTORS CORP.
  17. Insert the front wiring harness protector No. 2 into the stud bolt.

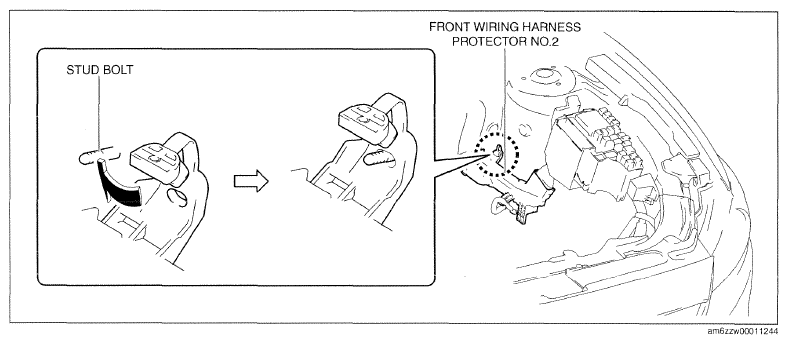

    Fig 12: Inserting Front Wiring Harness Protector No. 2 Into Stud Bolt
    G09788482Courtesy of MAZDA MOTORS CORP.
  18. Insert the front wiring harness protector No. 2 cap into the stud bolt.
  19. Install the front wiring harness protector No. 2 clip to the engine mount.
    Fig 13: Installing Front Wiring Harness Protector No. 2 Clip To Engine Mount
    G09788483Courtesy of MAZDA MOTORS CORP.

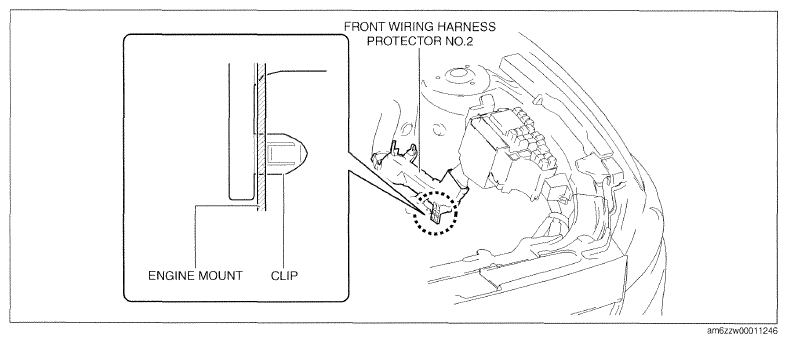

    Fig 14: Identifying Front Wiring Harness Protector No. 2
    G09788484Courtesy of MAZDA MOTORS CORP.
  20. Insert the relay and fuse block into the stud bolt.
    Fig 15: Inserting Relay And Fuse Block Into Stud Bolt
    G09788485Courtesy of MAZDA MOTORS CORP.
  21. Insert the relay and fuse block clip into the engine mount.
    Fig 16: Inserting Relay And Fuse Block Clip Into Engine Mount
    G09788486Courtesy of MAZDA MOTORS CORP.
  22. Install the nut and screw.
    Fig 17: Relay And Fuse Block Nut And Screw With Torque Specifications
    G09788487Courtesy of MAZDA MOTORS CORP.
  23. Connect the emission wiring harness connectors.
  24. Press the emission wiring harness into the relay and fuse block hook.
    Fig 18: Identifying Emission Wiring Harness Connectors
    G09788453Courtesy of MAZDA MOTORS CORP.
    Fig 19: Pressing Emission Wiring Harness Into Relay And Fuse Block Hook
    G09788489Courtesy of MAZDA MOTORS CORP.
  25. Connect the front body control module (FBCM) connectors. (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .)
  26. Install the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .)
  27. Install all the relays and fuses.
  28. Engage the relay and fuse block upper cover hook with the relay and fuse block middle cover tab.
    Fig 20: Identifying Relay And Fuse Block Tab And Hook
    G09788490Courtesy of MAZDA MOTORS CORP.
  29. Move the relay and fuse block upper cover in the direction of arrow (8) shown in the figure press the relay and fuse block middle cover tab into the relay and fuse block upper cover hook.

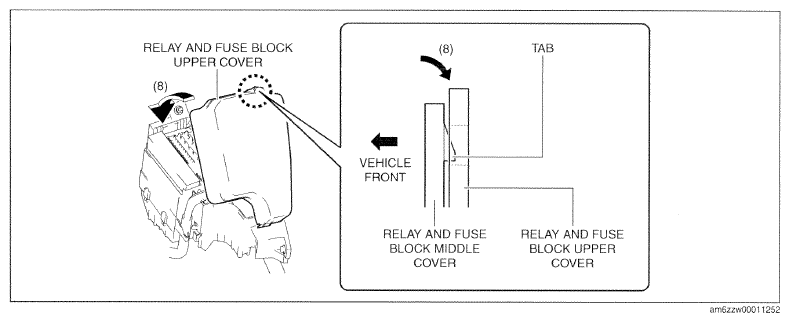

    Fig 21: Moving Relay And Fuse Block Upper Cover
    G09788491Courtesy of MAZDA MOTORS CORP.
  30. Install the parts removed in Steps  2 and  3 in "REMOVAL'. (See REMOVAL .)
  31. Perform the "Verify Relay and Fuse Block Replacement". (See VERIFY RELAY AND FUSE BLOCK REPLACEMENT .)
  32. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
