DSC Off Switch Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The DSC OFF switch is integrated with the cluster switch.
For the DSC OFF switch removal/installation, refer to CLUSTER SWITCH REMOVAL/INSTALLATION . (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
Verify that the resistance between cluster switches B and C is as indicated in the table.

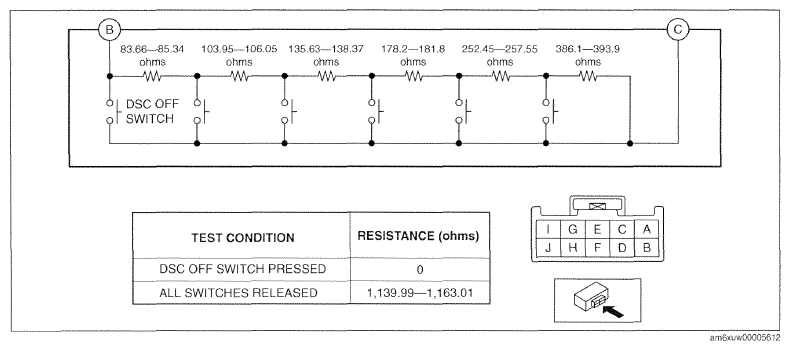

Fig 1: DSC Off Switch - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If the resistance cannot be verified as indicated in the table, replace the cluster switch.
Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.
Verify that the LED illuminates.
- If there is any malfunction, replace the cluster switch.

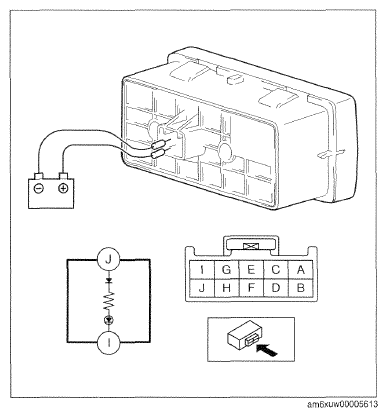

  Fig 2: Applying Battery Positive Voltage To Cluster Switch Terminal
  Courtesy of MAZDA MOTORS CORP.
