Front Abs Wheel-Speed Sensor Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

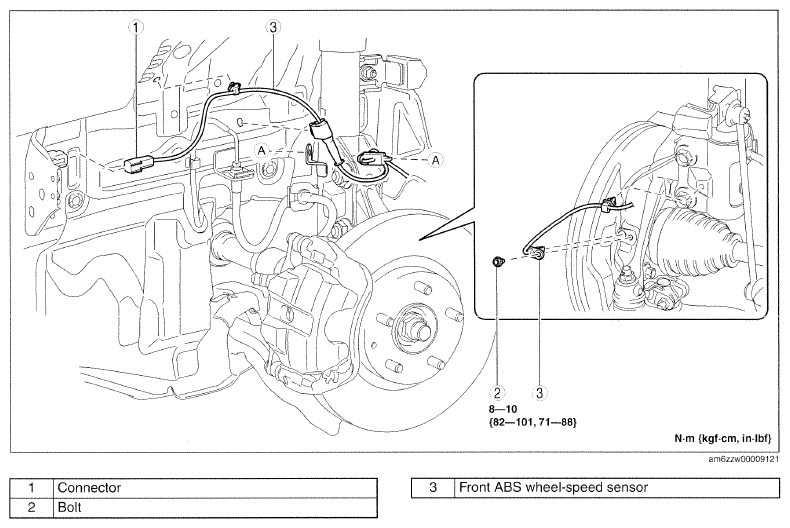

    Fig 1: Front ABS Wheel-Speed Sensor, Connector And Bolt With Torque Specification
    G09785871Courtesy of MAZDA MOTORS CORP.
