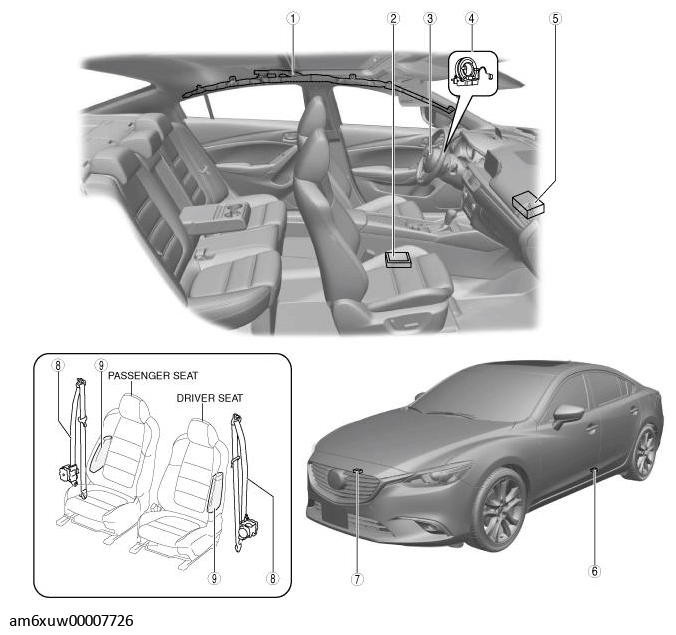

| 1 |
Curtain air bag module
(See
CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See
AIR BAG MODULE AND PRETENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
| 2 |
SAS control module
(See
SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See SAS CONTROL MODULE CONFIGURATION (USING READ/WRITE FUNCTION) [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See SAS CONTROL MODULE CONFIGURATION (USING AS-BUILT DATA) [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
| 3 |
Driver-side air bag module
(See
DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See
DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See
AIR BAG MODULE AND PRETENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
| 4 |
Clock spring
(See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See CLOCK SPRING ADJUSTMENT [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See CLOCK SPRING INSPECTION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
| 5 |
Passenger-side air bag module
(See
PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See
AIR BAG MODULE AND PRETENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
| 6 |
Side airbag sensor
(See
SIDE AIR BAG SENSOR REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
| 7 |
Crash zone sensor
(See
CRASH ZONE SENSOR REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
| 8 |
Pre-tensionerseat belt
(See
FRONT SEAT BELT REMOVAL/INSTALLATION
.)
(See
AIR BAG MODULE AND PRETENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
| 9 |
Side airbag module
(See
SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See
AIR BAG MODULE AND PRETENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .) |
