Front Buckle Removal/Installation

  1. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Disconnect the front buckle connector.

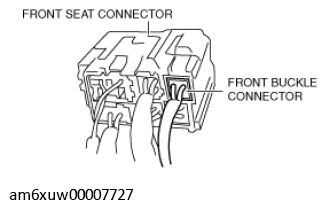

    Fig 1: Locating Front Buckle Connector
    G11546162Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
    Fig 2: Locating Front Buckle Bolt
    G11546163Courtesy of MAZDA MOTORS CORP.
  5. Remove the front buckle.
  6. Install in the reverse order of removal.
