Rear Buckle Installation Note

  1. After installing the rear buckle, place it as shown in the figure.

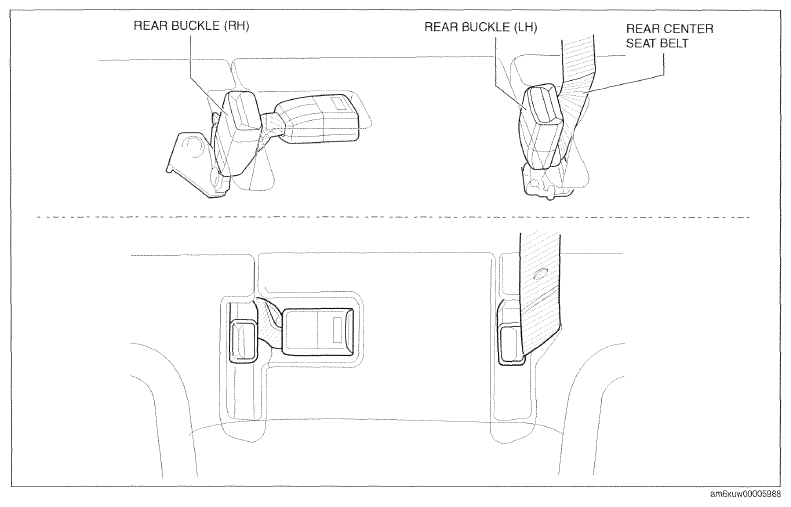

Fig 1: Locating Rear Buckle Position
G09787239Courtesy of MAZDA MOTORS CORP.
