Bracket Installation Note

Insert the bracket bolt into the steering column and install the projecting part of the bracket to the installation area of the steering column.

Fig 1: Installing Projecting Part Of Bracket To Steering Column
Courtesy of MAZDA MOTORS CORP.

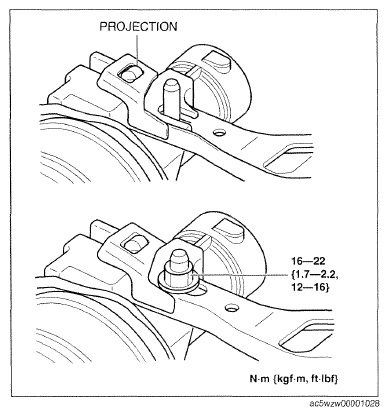

Verify that the projection on the steering column is inserted into the hole in the bracket as shown in the figure and tighten the nut to the specified torque.

Fig 2: Locating Position Of Steering Colum Projection

Courtesy of MAZDA MOTORS CORP.
