Front Abs Wheel-Speed Sensor Removal/Installation: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

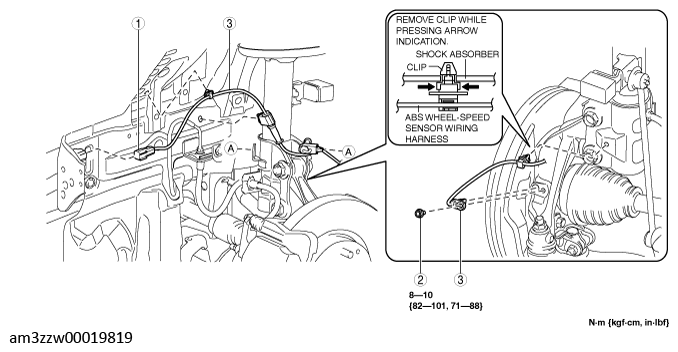

Fig 1: Exploded View Of Front ABS Wheel-Speed Sensor With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector (See Connector Disconnection Note .)
2	Bolt
3	Front ABS wheel-speed sensor (See Connector Disconnection Note .)
