Auto Leveling Sensor Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the auto leveling sensor. (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)
Prepare three dry cell batteries (1.5 V ).
Connect the three dry cell batteries in a series.

Fig 1: Checking Auto Leveling Sensor
Courtesy of MAZDA MOTORS CORP.
Connect the positive pole of the dry cell battery to auto leveling sensor terminal C, and the negative pole to terminal A.

Fig 2: Connecting Positive Pole Of Dry Cell Battery To Auto Leveling Sensor Terminal
Courtesy of MAZDA MOTORS CORP.
Connect the tester as shown in the figure with approx. 4.5 V of voltage applied between auto leveling sensor terminals A and C, and measure the voltage at auto leveling sensor terminal B.

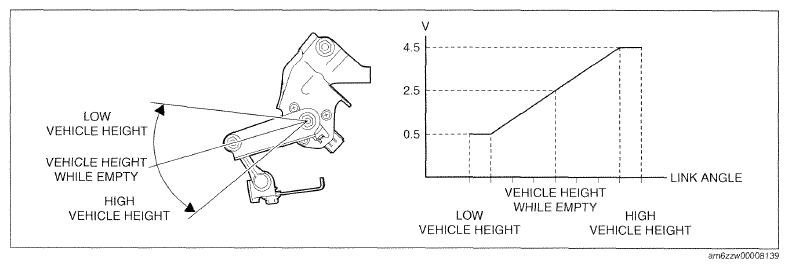

When slowly moving the auto leveling sensor link up and down, verify that the voltage fluctuates linearly between 0.5-4.5 V as shown in the figure.

Fig 3: Verifying Voltage Fluctuates Linearly Between 0.5 - 4.5 V
Courtesy of MAZDA MOTORS CORP.

Fig 4: Voltage Fluctuates Graph
Courtesy of MAZDA MOTORS CORP.
- If the voltage cannot be verified as indicated in the graph, replace the auto leveling sensor. (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)
