Short Cord Removal Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. While pressing the clip tabs in the direction of the arrows (1) shown in the figure, press the clip in the direction of the arrow (2) shown in the figure to detach the clip tabs and front combination light.

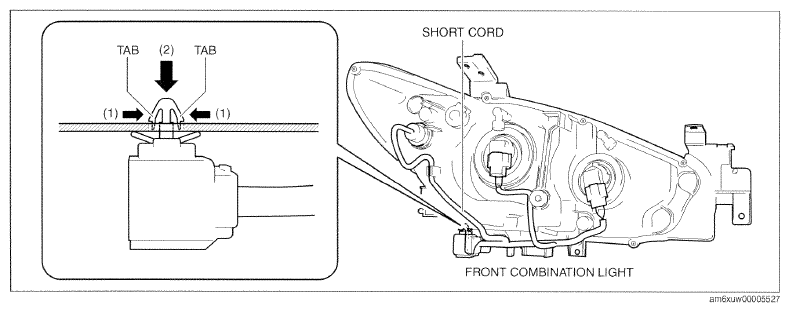

    Fig 1: Identifying Front Combine Light And Short Cord
    G09788086Courtesy of MAZDA MOTORS CORP.
  2. Remove the short cord.
