Clip Replacement Note

  1. Remove the rubber boot.

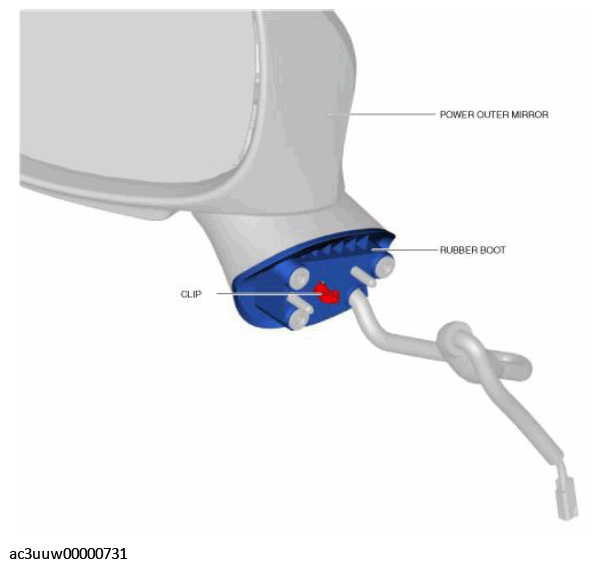

    Fig 1: Removing Rubber Boot Clip
    G11434279Courtesy of MAZDA MOTORS CORP.
  2. Remove the screw.

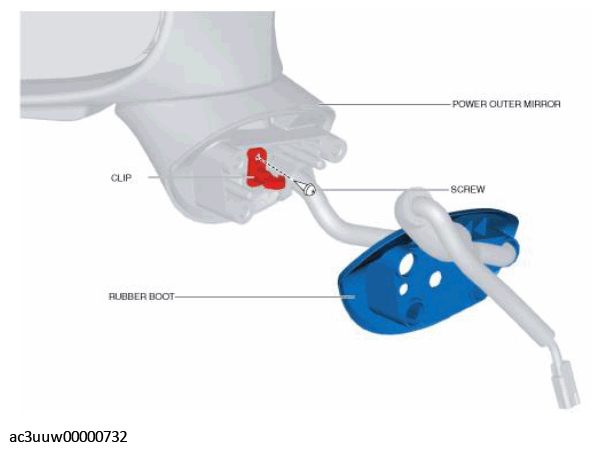

    Fig 2: Removing Screw
    G11434280Courtesy of MAZDA MOTORS CORP.
  3. Remove the clip.
  4. Install in the reverse order of removal.
