Manual Air Conditioner: Notes

System wiring diagram

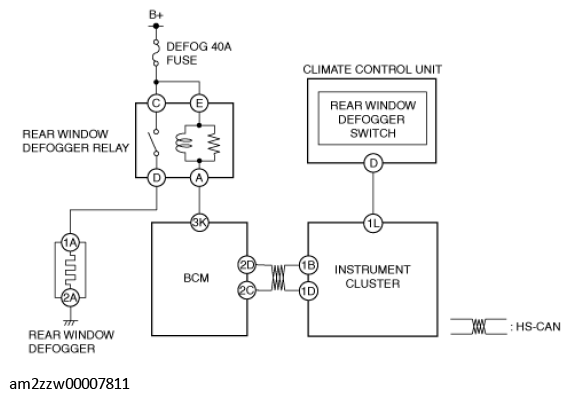

Fig 1: Rear Window Defogger System Wiring Diagram (Manual Air Conditioner)
G11434336Courtesy of MAZDA MOTORS CORP.
