DTC U0338-00; Start Stop Unit Error: Notes
DTC U0338-00; START STOP UNIT ERROR - DETECTION CONDITION & POSSIBLE CAUSE
| DTC U0338:00 |
Start stop unit error |
| DETECTION CONDITION |
- When any of the following conditions is met:
- CAN communication line malfunction between start stop unit and PCM
- Start stop unit internal malfunction
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- CAN drive error (start stop unit or PCM)

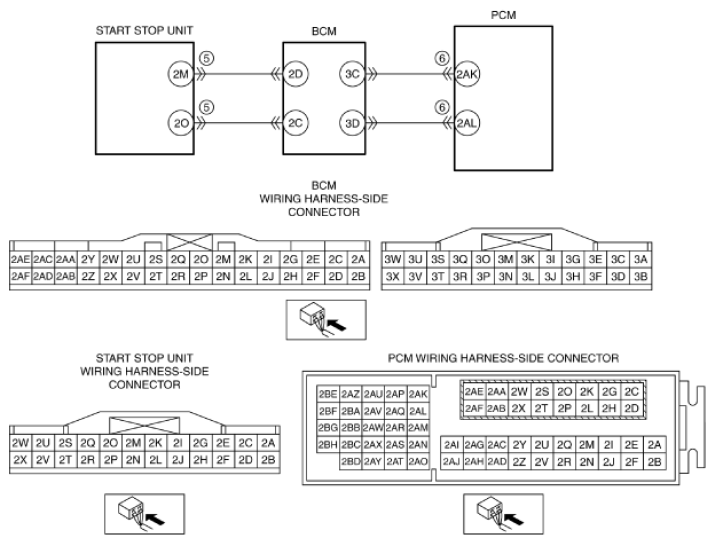

- CAN communication line malfunction between start stop unit and PCM
- Start stop unit terminal 2M-BCM terminal 2D
- Start stop unit terminal 2O-BCM terminal 2C
- BCM terminal 3C-PCM terminal 2AK
- BCM terminal 3D-PCM terminal 2AL
- Start stop unit connector or terminals malfunction
- PCM connector or terminals malfunction
- Start stop unit malfunction
- PCM malfunction
|
|
|
