Rear Buckle Installation Note

  1. After installing the rear buckle, place it as shown in the figure.

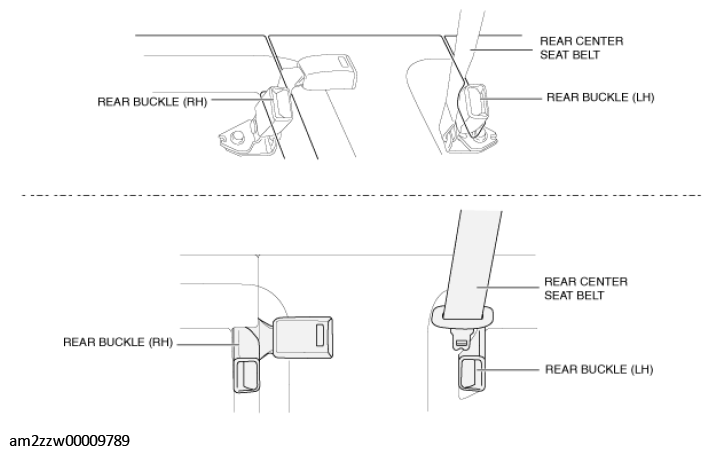

Fig 1: Placing Rear Buckle (RH) To Rear Center Seat Belt
G11437954Courtesy of MAZDA MOTORS CORP.
