Intake Manifold Removal Note

  1. Disconnect the MAP sensor/IAT sensor No. 2 connector (Removal of a sensor is not performed). (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
  2. Disconnect the harness clip from the intake manifold as shown in the figure.

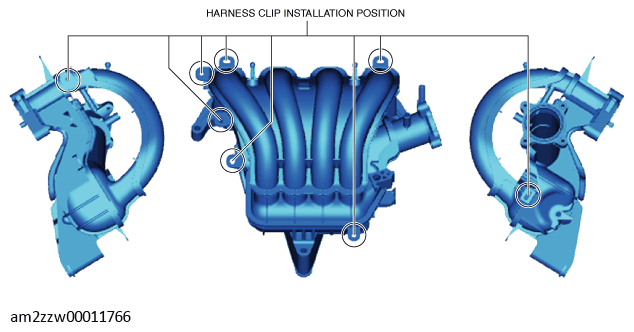

    Fig 1: Intake Manifold Harness Clip Installation Position
    G11437041Courtesy of MAZDA MOTORS CORP.
  3. Remove the intake manifold.
