Troubleshooting Procedure

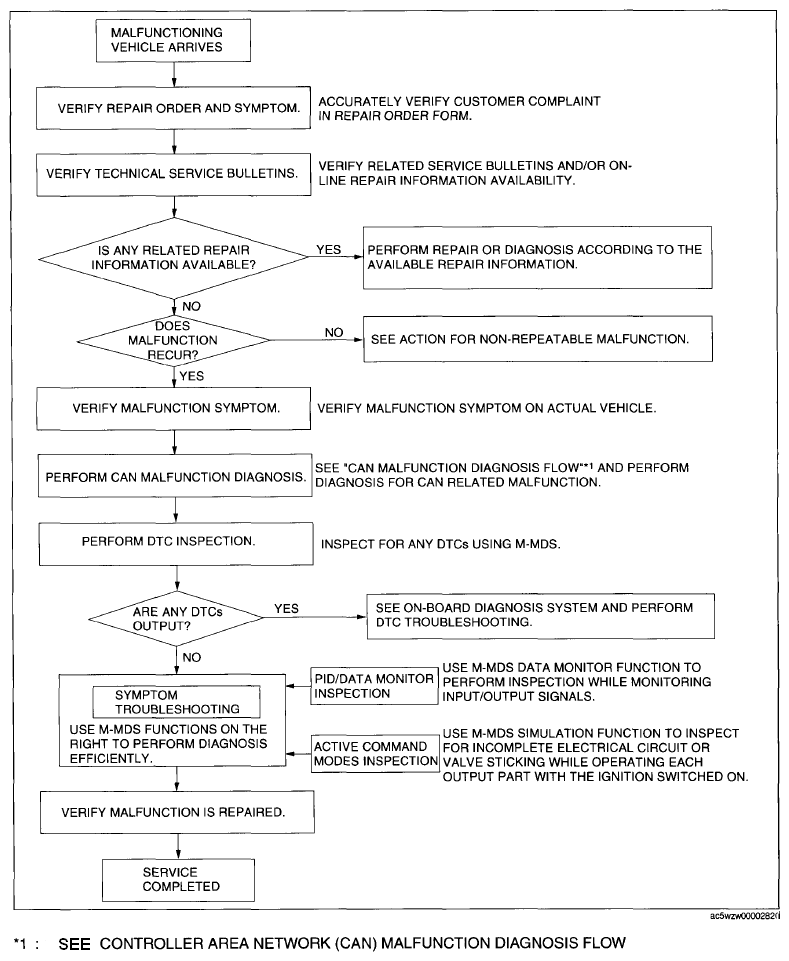

Fig 1: Vehicle Malfunction Troubleshooting Flow Chart
G09076512Courtesy of MAZDA MOTORS CORP.

*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
