Outer Mirror Glass Installation

NOTE:

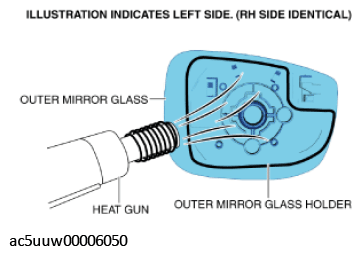

Installation of the outer mirror glass can be facilitated by heating the outer mirror glass holder to approx. 50°C {90°F} to 60°C {108°F} degrees using a heat gun.
Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} degrees could deform it.

Fig 1: Heating Outer Mirror Glass Holder Using Heat Gun

Courtesy of MAZDA MOTORS CORP.

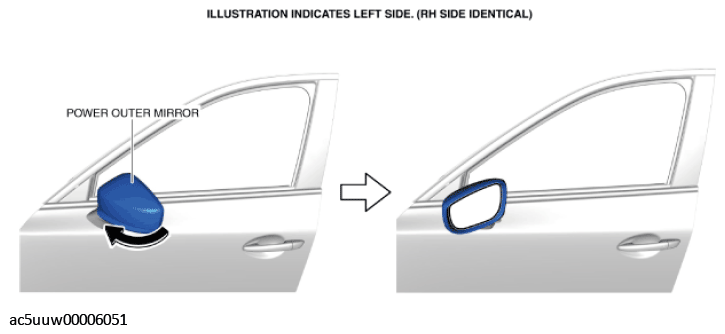

To facilitate installation of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

Fig 2: Turning Power Outer Mirror
Courtesy of MAZDA MOTORS CORP.

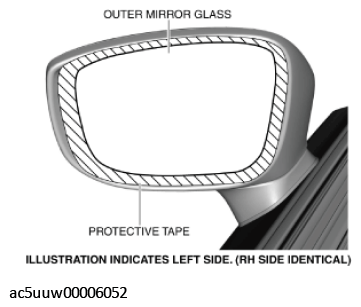

To prevent scratches or damage, apply protective tape to the positions shown in the figure.

Fig 3: Applying Protective Tape To Positions
Courtesy of MAZDA MOTORS CORP.

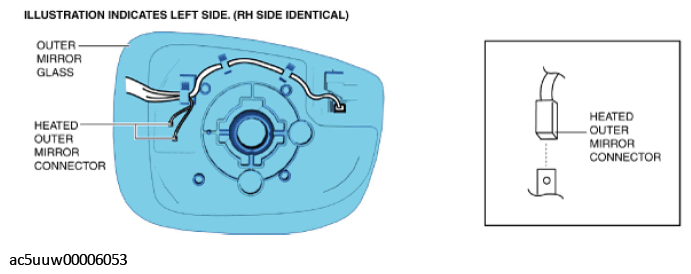

Connect the heated outer mirror connectors. (with heated outer mirror)

Fig 4: Connecting Heated Outer Mirror Connectors
Courtesy of MAZDA MOTORS CORP.
Connect the blind spot monitoring (BSM) indicator light connector. (With blind spot monitoring (BSM) system)
CAUTION:
- Lightly pull the blind spot monitoring (BSM) indicator light connector to verify that it cannot be pulled out of the blind spot monitoring (BSM) indicator light housing. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector.
Fig 5: Connecting Blind Spot Monitoring (BSM) Indicator Light Connector
Courtesy of MAZDA MOTORS CORP.
Press in outer mirror pins B and C in the direction of the arrows shown in the figure.

Fig 6: Pressing Outer Mirror Pins
Courtesy of MAZDA MOTORS CORP.
Align the outer mirror glass with the outer mirror in the direction of arrow (1) shown in the figure and install pin A while pressing in the directions of arrows (2).
CAUTION:
- If the outer mirror moves when installing the outer mirror glass, the stay could be damaged. When installing the outer mirror glass, use both hands to press together the outer mirror glass and outer mirror.
Fig 7: Installing Outer Mirror Glass
Courtesy of MAZDA MOTORS CORP.

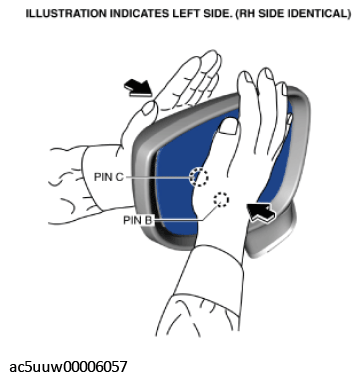

Install pins B and C in the same manner as Step 6.

Fig 8: Installing Outer Mirror Glass Pins
Courtesy of MAZDA MOTORS CORP.
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
