Sensor Cover Removal/Installation

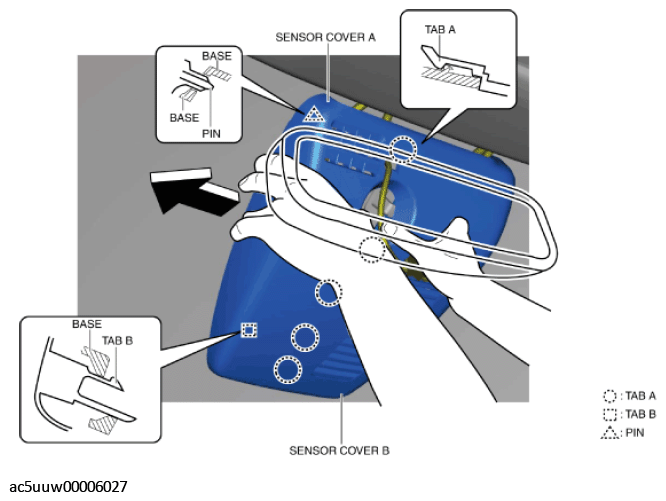

Pull sensor cover A in the direction of the arrow shown in the figure and detach tabs A from sensor cover B.

Fig 1: Pulling Sensor Cover A
Courtesy of MAZDA MOTORS CORP.
Pull sensor cover A in the direction of the arrow shown in the figure and detach tab B and the pin from the base.

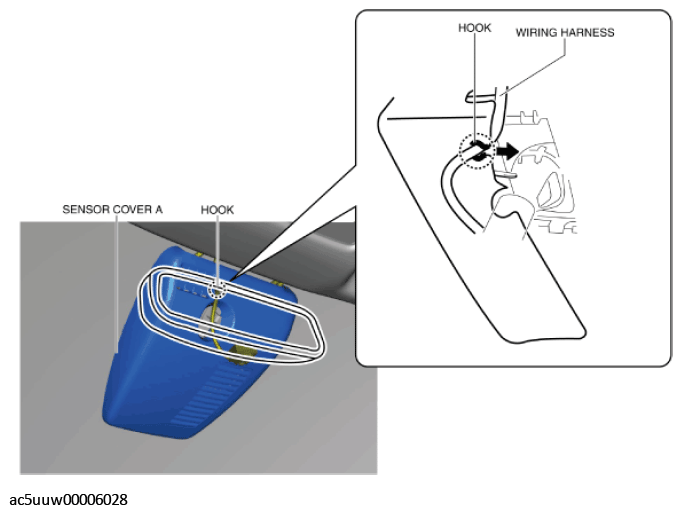

Remove the wiring harness from the hook. (with auto-dimming rearview mirror)

Fig 2: Removing Wiring Harness From Hook
Courtesy of MAZDA MOTORS CORP.
Remove sensor cover A.

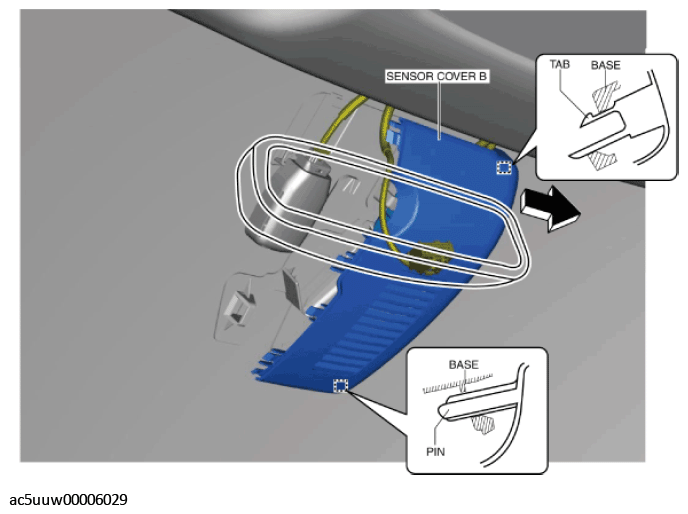

Pull sensor cover B in the direction of the arrow shown in the figure and detach the tabs and pins from the base.

Fig 3: Pulling Sensor Cover B
Courtesy of MAZDA MOTORS CORP.
Remove sensor cover B.
Install in the reverse order of removal.
