DTC P0073-00: Ambient Temperature Sensor Circuit High Input: Notes
DTC DETECTION DESCRIPTION
| DTC P0073:00 |
Ambient temperature sensor circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input signal from the ambient temperature sensor. If the voltage from the ambient temperature sensor is above 4.89 V, the PCM determines that the ambient temperature sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Ambient temperature sensor connector or terminals malfunction
- PCM connector or terminals malfunction

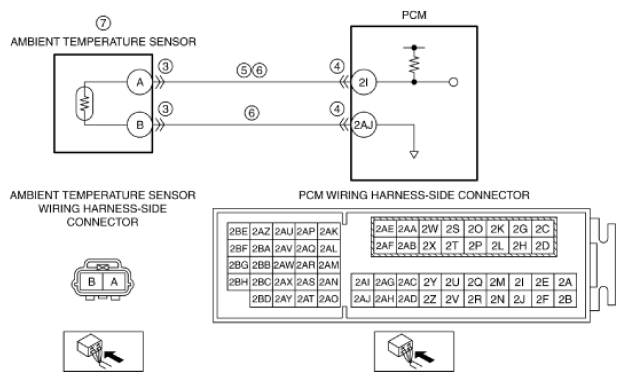

- Short to power supply in wiring harness between ambient temperature sensor terminal A and PCM terminal 2I
- Open circuit in wiring harness between the following terminals:
- Ambient temperature sensor terminal A-PCM terminal 2I
- Ambient temperature sensor terminal B-PCM terminal 2AJ
- Ambient temperature sensor malfunction
- PCM malfunction
|
|
|
