DTC P025D-00: Fuel Pump Control Module Result Of On-Board Diagnostic Test High Input: Notes
DTC DETECTION DESCRIPTION
| DTC P025D:00 |
Fuel pump control module result of on-board diagnostic test high input |
| DETECTION CONDITION |
- Result of on-board test cannot be received from fuel pump control module (voltage is too high).
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Fuel pump control module connector or terminals malfunction
- PCM connector or terminals malfunction

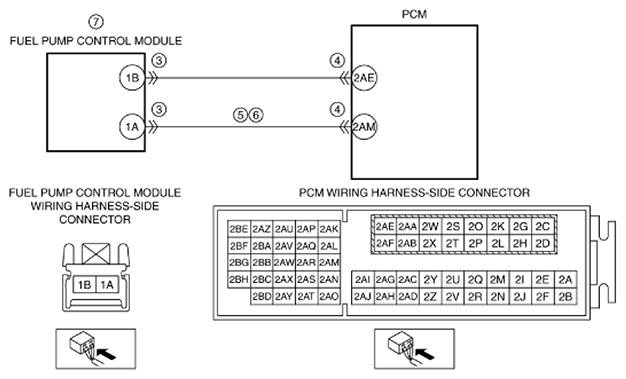

- Short to power supply in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AM
- Open circuit in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AM
- Fuel pump control module malfunction
- PCM malfunction
|
|
|
