DTC P06DA-00: Engine Oil Solenoid Valve Circuit Problem: Notes
DTC DETECTION DESCRIPTION
| DTC P06DA:00 |
Engine oil solenoid valve circuit problem |
| DETECTION CONDITION |
- The engine oil solenoid valve control current is high or the control voltage at the PCM terminal 1AS is low relative to the PCM control condition.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Inhibits the engine oil control.
|

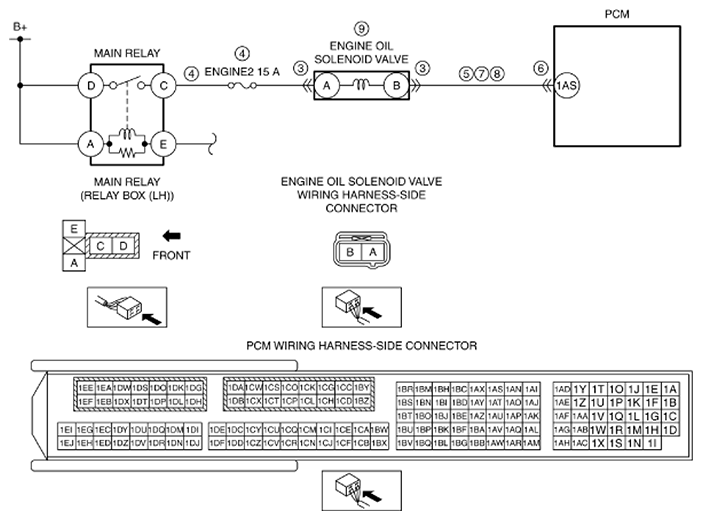

| POSSIBLE CAUSE |
- Engine oil solenoid valve connector or terminals malfunction
- Short to ground or open circuit in engine oil solenoid valve power supply circuit
- Short to ground in wiring harness between ENGINE2 15 A fuse and engine oil solenoid valve terminal A
- ENGINE2 15 A fuse malfunction
- Open circuit in wiring harness between main relay terminal C and engine oil solenoid valve terminal A
- Short to ground in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS
- PCM connector or terminals malfunction
- Short to power supply in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS
- Open circuit in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS
- Engine oil solenoid valve malfunction
- PCM malfunction
|
|
|
