Without Bluetooth System
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. For TWO-STEP DEPLOYMENT CONTROL SYSTEM, see AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] and AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] . For STANDARD DEPLOYMENT CONTROL SYSTEM, see AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] and AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
- Switch the ignition OFF (LOCK).
- Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] or DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
- Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

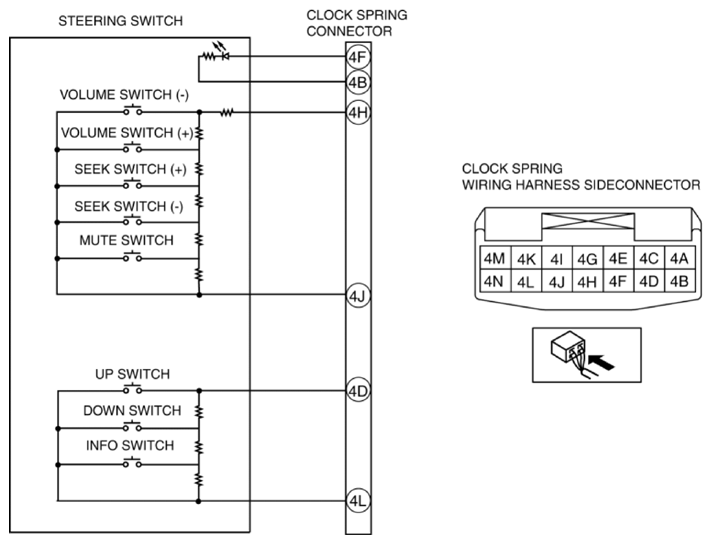

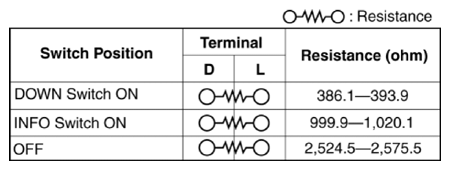

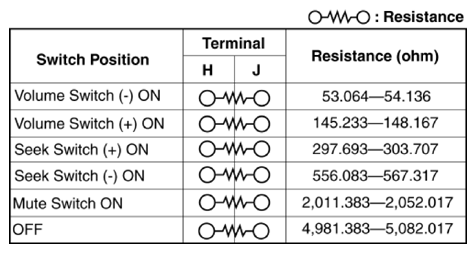

- Verify that the resistance and continuity between the steering switch terminals is as indicated in the table.
- If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)

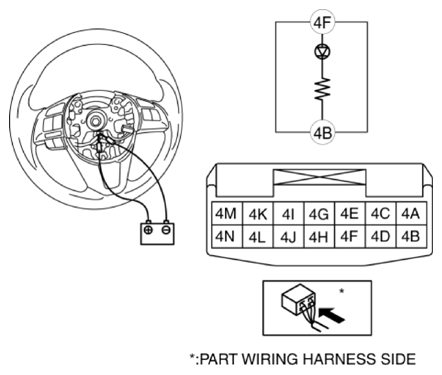

- Apply battery positive voltage to steering switch terminal F, and connect terminal B to ground.
- Verify that the LED illuminates.
- If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
