Starter Disassembly/Assembly
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.

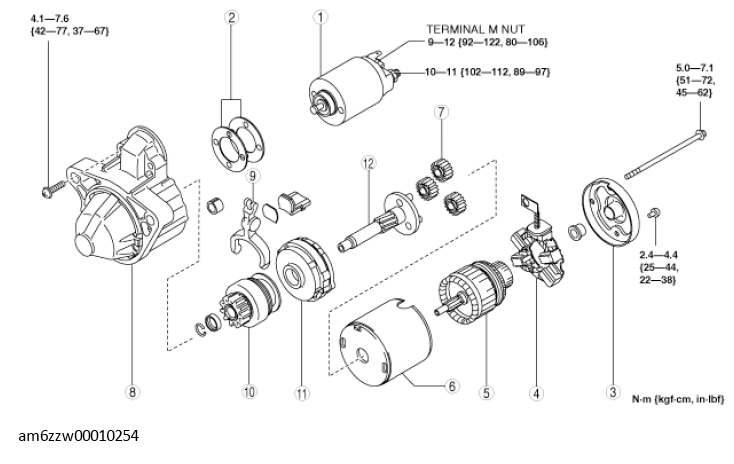

COMPONENT DESCRIPTION
| 1 | Magnetic switch |
| 2 | Adjustment washer |
| 3 | Rear housing |
| 4 | Brush and brush holder |
| 5 | Armature |
| 6 | Yoke |
| 7 | Planetary gear |
| 8 | Front cover |
| 9 | Lever |
| 10 | Drive pinion |
| 11 | Internal gear |
| 12 | Gear shaft |
