Brake Pipe Installation Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

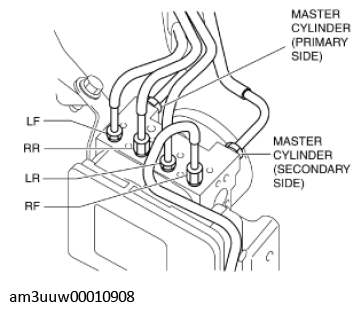

- Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.
Courtesy of MAZDA MOTORS CORP.
- Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
