Air Hose Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air hose as shown in the figure.

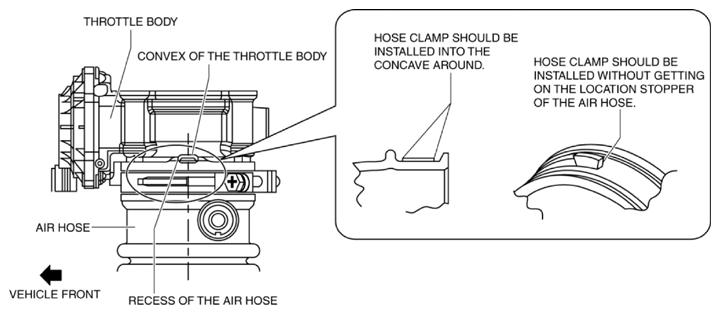

Fig 1: Identifying Air Hose Installation Position - Throttle Body Side
G10916242Courtesy of MAZDA MOTORS CORP.

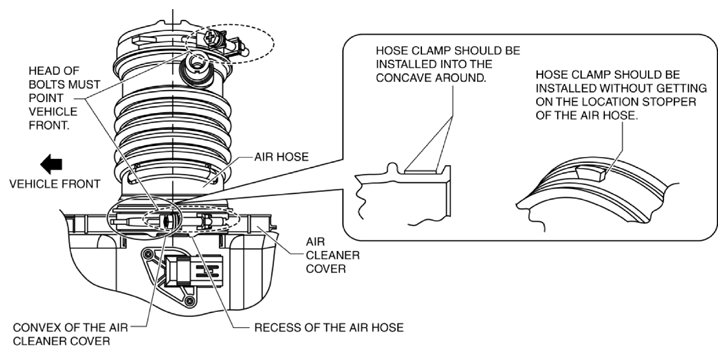

Fig 2: Identifying Air Hose Installation Position - Air Cleaner Side
G10916243Courtesy of MAZDA MOTORS CORP.
