Fresh-air Duct Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fresh-air duct as shown in the figure.

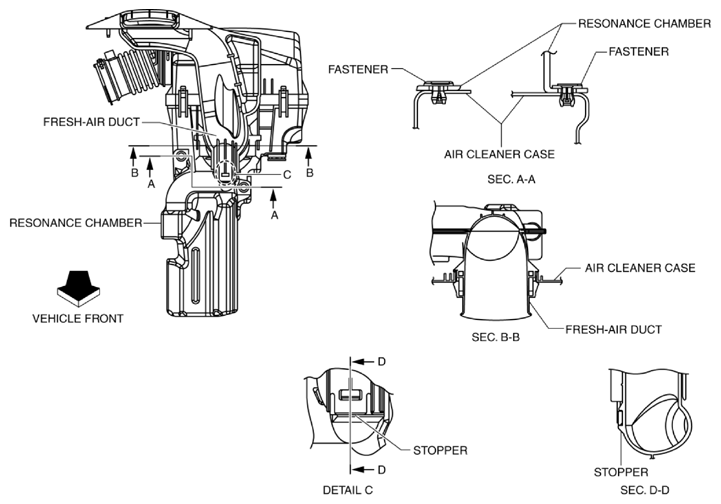

Fig 1: Identifying Fresh-Air Duct Installation Position
G10916241Courtesy of MAZDA MOTORS CORP.
