Ventilation Hose Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ventilation hose as shown in the figure.

Cylinder head cover side

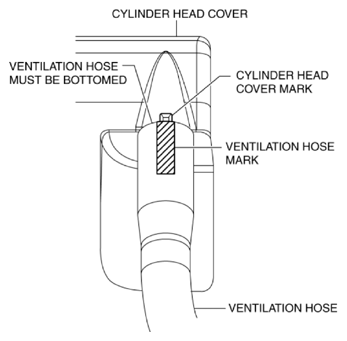

Fig 1: Identifying Ventilation Hose Installation Position - Cylinder Head Cover Side
G10916244Courtesy of MAZDA MOTORS CORP.

Air hose side

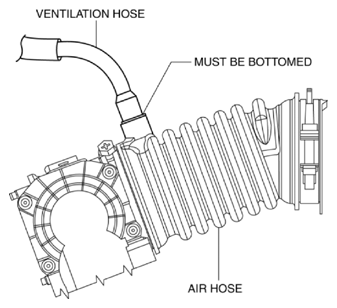

Fig 2: Identifying Ventilation Hose Installation Position - Air Hose Side
G10916245Courtesy of MAZDA MOTORS CORP.
