Power Window Main Switch Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the cover A.

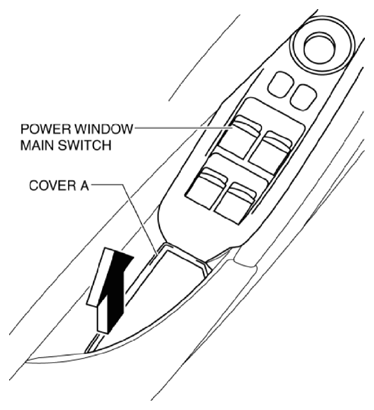

    Fig 1: Removing Power Window Main Switch Cover
    G10938445Courtesy of MAZDA MOTORS CORP.
  3. Insert a tape-wrapped fastener remover shown in the figure and remove the tab B in the direction of arrow (1).

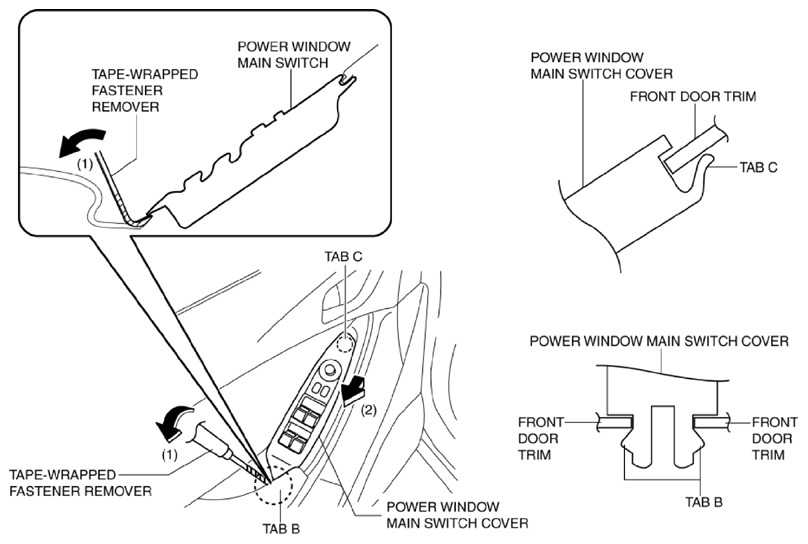

    Fig 2: Removing Power Window Main Switch Tab
    G10938446Courtesy of MAZDA MOTORS CORP.
  4. Slide the power window main switch cover in the direction of the arrow (2) shown in the figure and remove the tab C.
  5. Disconnect the power window main switch connector.
  6. Pull the edge of power window main switch cover in the direction of arrow (3) and detach tabs D.

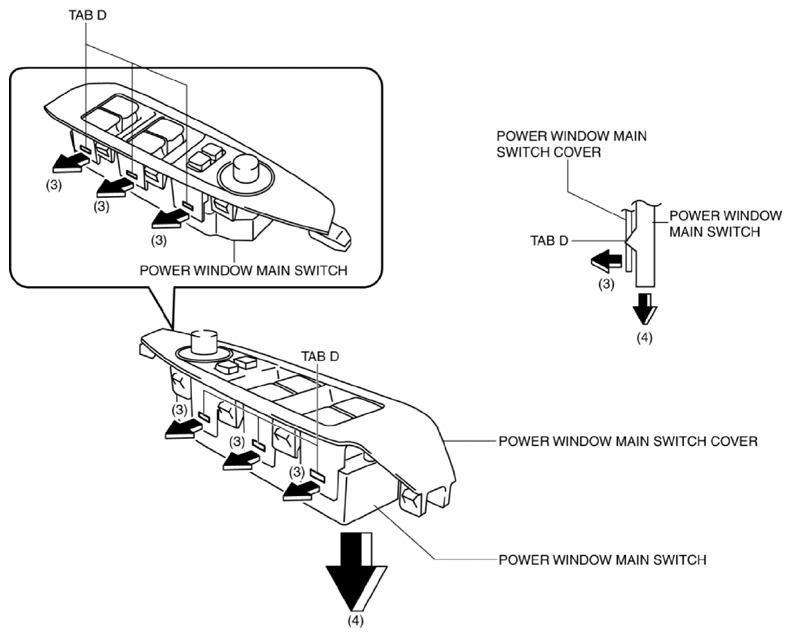

    Fig 3: Pulling Out Power Window Main Switch Cover Edge
    G10938447Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window main switch in the direction of arrow (4) shown in the figure.
  8. Install in the reverse order of removal.
