Steering Gear And Linkage Assembly: Notes

Special Service Tool (SST)

49 JP02 001 Adjustable wrench	Courtesy of MAZDA MOTORS CORP.
49 T025 001 Boot clamp crimpers	Courtesy of MAZDA MOTORS CORP.

Replacement Part

Boot band
Quantity: 2
Location of use: Boot

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Assemble in the order shown in the figure.
Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

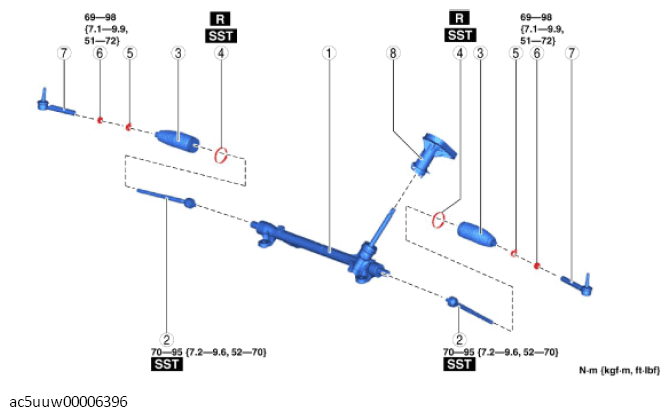

Fig 1: Exploded View Of Steering Gear And Linkage Assembly With Tightening Torque

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Steering gear
2	Tie Rod (See Tie Rod Assembly Note .)
3	Boot
4	Boot band (See Boot Band Assembly Note .)
5	Boot clamp
6	Lock nut
7	Tie-rod end (See Tie-rod End Assembly Note .)
8	Dust cover
