Indicator Removal/Installation: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts.
1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
3. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.

Fig 1: Removing Boots From Boots Securing Parts
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.

Install in the reverse order of removal.

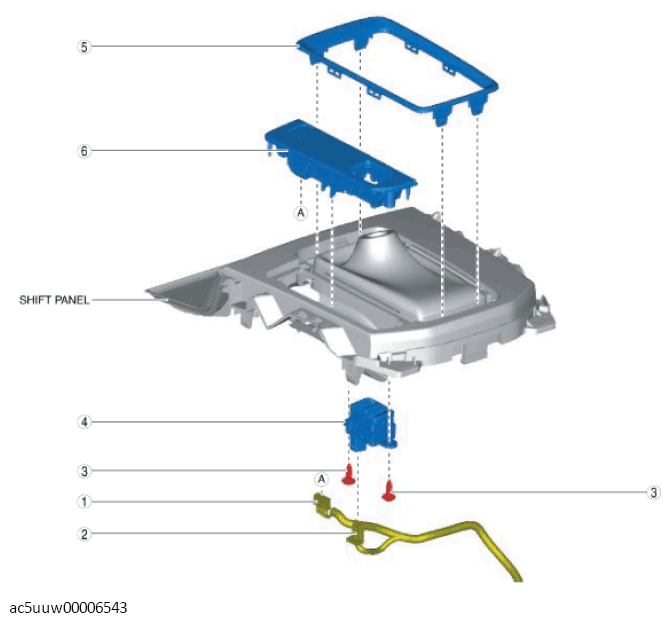

Fig 2: Shift Panel Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Indicator connector
2	Drive selection switch connector
3	Screw
4	Drive selection switch
5	Indicator panel
6	Indicator (See Indicator Removal Note .)
