Oil Pressure Switch Removal/Installation: Notes
Replacement Part
Bolt
Quantity: 16
Location of use: Oil pan
Oil and Chemical Type
Sealant
Type: TB1217E or equivalent
WARNING:
- A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool.
- Always wear protective eye wear when using the air compressor. If the air compressor is used, any particles of dirt or sludge could spatter and get into the eyes.
CAUTION:
- If the oil pressure switch has been replaced, perform initial learning. (See INITIAL LEARNING .)

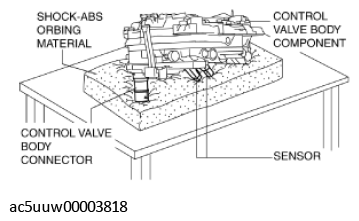

- Placing the control valve body connector side pointed downward could damage the control valve body connector part or sensor. If the servicing can only be performed by pointing the control valve body connector side downward, spread shock-absorbing material, which does not produce dust or foreign matter, and place the control valve body connector part and sensor on the table so that they do not directly contact the table.
