Door Glass Other Than Driver's Door Cannot Be Operated (Cannot Be Operated Using Power Window Main Switch But Can Be Operated Using Each SUBSWITCH) [Power Window System]: Notes
DOOR GLASS OTHER THAN DRIVER'S DOOR CANNOT BE OPERATED (CANNOT BE OPERATED USING POWER WINDOW MAIN SWITCH BUT CAN BE OPERATED USING EACH SUBSWITCH) - POWER WINDOW SYSTEM DESCRIPTION AND POSSIBLE CAUSES
| Description |
Door glass other than driver's door can be operated using subswitches but cannot be operated using power window main switch |
| Possible Causes |
- Power window main switch malfunction

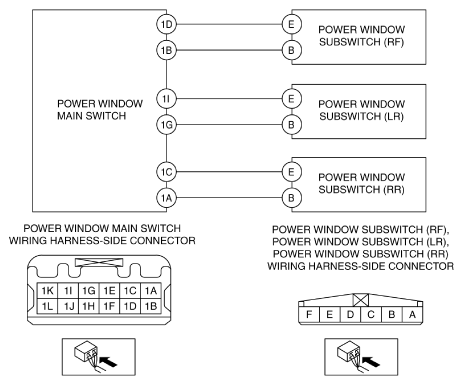

- Short to ground in wiring harness between the following terminals:
- Power window main switch terminal 1D and power window subswitch (RF) terminal E
- Power window main switch terminal 1B and power window subswitch (RF) terminal B
- Power window main switch terminal 1I and power window subswitch (LR) terminal E
- Power window main switch terminal 1G and power window subswitch (LR) terminal B
- Power window main switch terminal 1C and power window subswitch (RR) terminal E
- Power window main switch terminal 1A and power window subswitch (RR) terminal B
- Open circuit in wiring harness between the following terminals:
- Power window main switch terminal 1D and power window subswitch (RF) terminal E
- Power window main switch terminal 1B and power window subswitch (RF) terminal B
- Power window main switch terminal 1I and power window subswitch (LR) terminal E
- Power window main switch terminal 1G and power window subswitch (LR) terminal B
- Power window main switch terminal 1C and power window subswitch (RR) terminal E
- Power window main switch terminal 1A and power window subswitch (RR) terminal B
- Connector poor contact or terminal damage
|
|
|
