Driver-Side Door Glass Cannot Be Operated Manually Or Automatically [Power Window System]: Notes

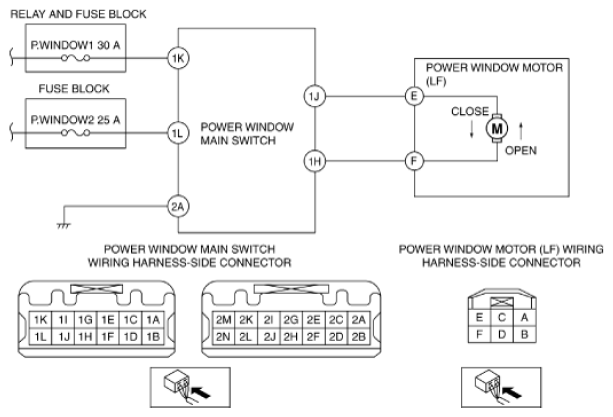

DRIVER-SIDE DOOR GLASS CANNOT BE OPERATED MANUALLY OR AUTOMATICALLY (POWER WINDOW SYSTEM) DESCRIPTION AND POSSIBLE CAUSES
| Description |
Driver-side door glass cannot be operated manually or automatically using power window main switch |
| Possible Causes |
- Power window main switch malfunction
- Power window motor malfunction
- Malfunction in power window main switch power supply circuit
- Short to ground in wiring harness between P.WINDOW1 30A fuse and power window main switch terminal 1K
- Short to ground in wiring harness between P.WINDOW2 25A fuse and power window main switch terminal 1L
- P.WINDOW1 30A fuse malfunction
- P.WINDOW2 25A fuse malfunction
- Open circuit in wiring harness between P.WINDOW1 30A fuse and power window main switch terminal 1K
- Open circuit in wiring harness between P.WINDOW2 25A fuse and power window main switch terminal 1L
- Malfunction in wiring harness between power window main switch terminals and power window motor terminals
- Open circuit in wiring harness between power window main switch terminal 1J and power window motor terminal E
- Open circuit in wiring harness between power window main switch terminal 1H and power window motor terminal F
- Short to ground in wiring harness between power window main switch terminal 1J and power window motor terminal E
- Short to ground in wiring harness between power window main switch terminal 1H and power window motor terminal F
- Open circuit in wiring harness between power window main switch terminal 2A and body ground
- Connector poor contact or terminal damage
|
|
|
