Instrument Cluster Installation Note

  1. Install the screws in the order of (1), (2), and (3).

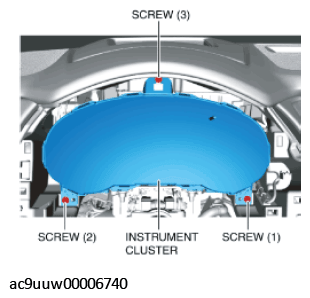

Fig 1: Instrument Cluster And Screws Tightening Sequence
G11434824Courtesy of MAZDA MOTORS CORP.
