Exhaust System Removal/Installation (AWD): Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove in the order indicated in the table.
Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION (AWD) .)
Install in the reverse order of removal.

Step 1

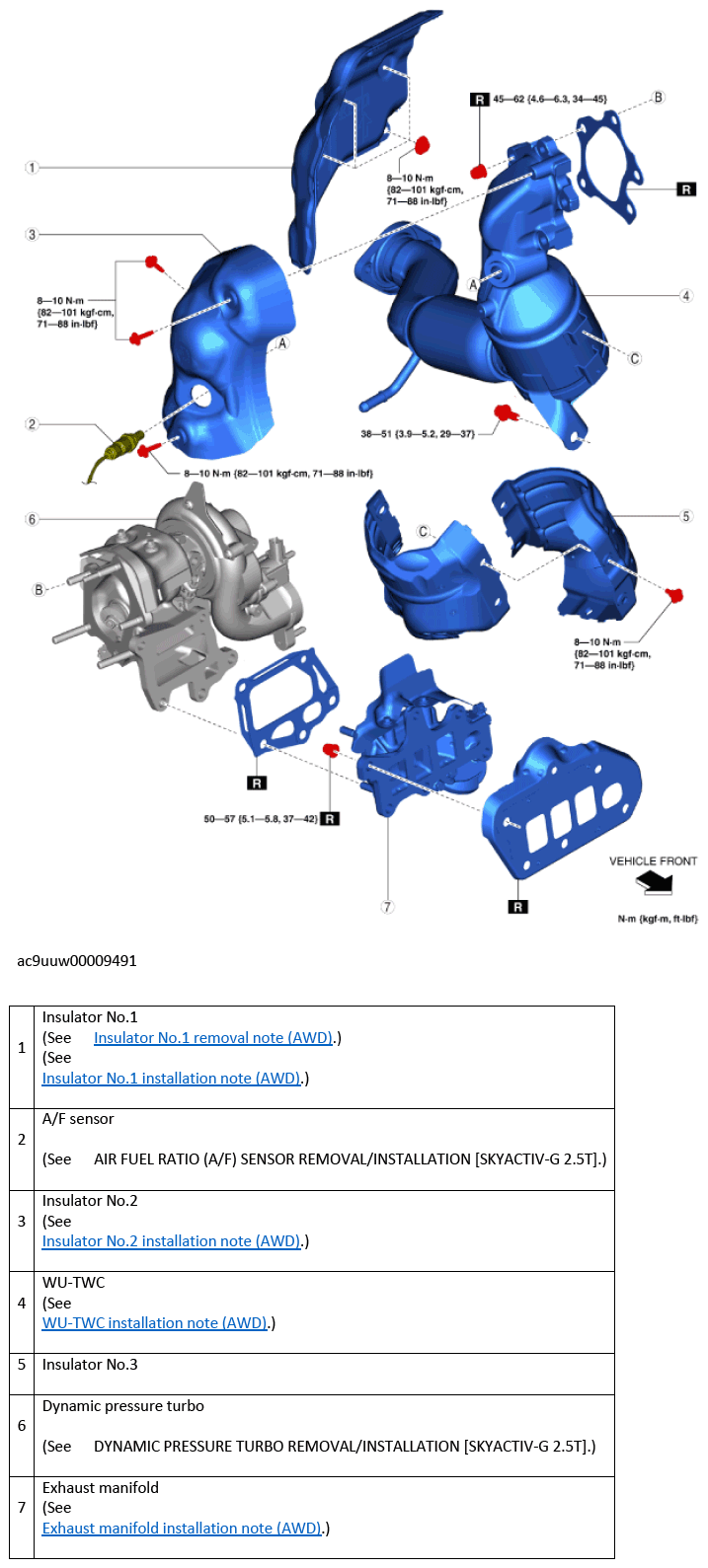

Fig 1: Exploded View Of Exhaust System (AWD; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Step 2

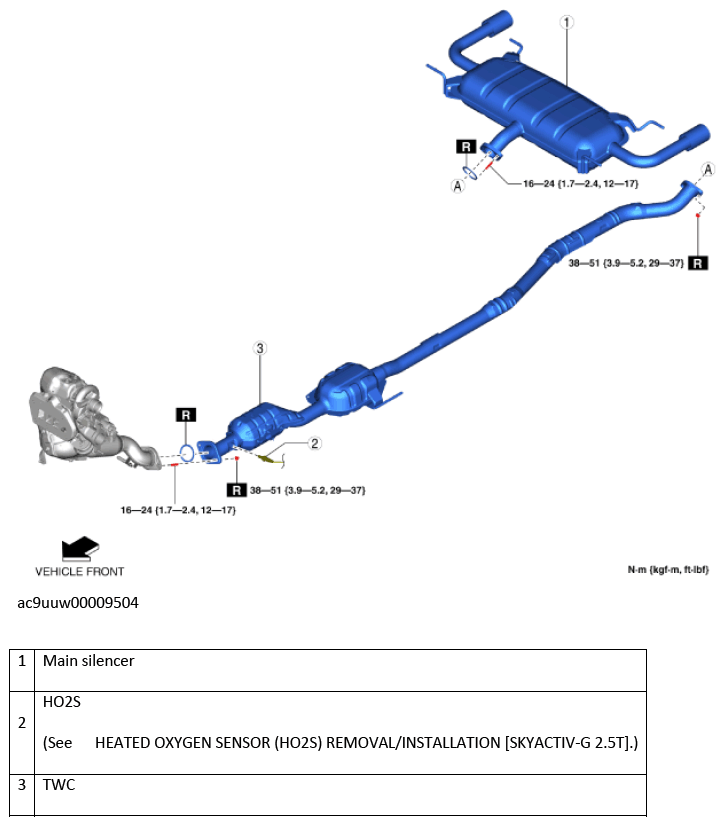

Fig 2: Exploded View Of Exhaust System (AWD; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
