DTC P1380-00; Electric Variable Valve Timing Control Circuit Problem: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P1380:00 |
Electric variable valve timing control circuit problem |
| DETECTION CONDITION |
- A malfunction is detected in the results of the on-board diagnostic test received from the electric variable valve timing driver.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Stops activation of the electric variable valve timing driver.
|
| POSSIBLE CAUSE |
- Electric variable valve timing motor/driver connectors or terminals malfunction

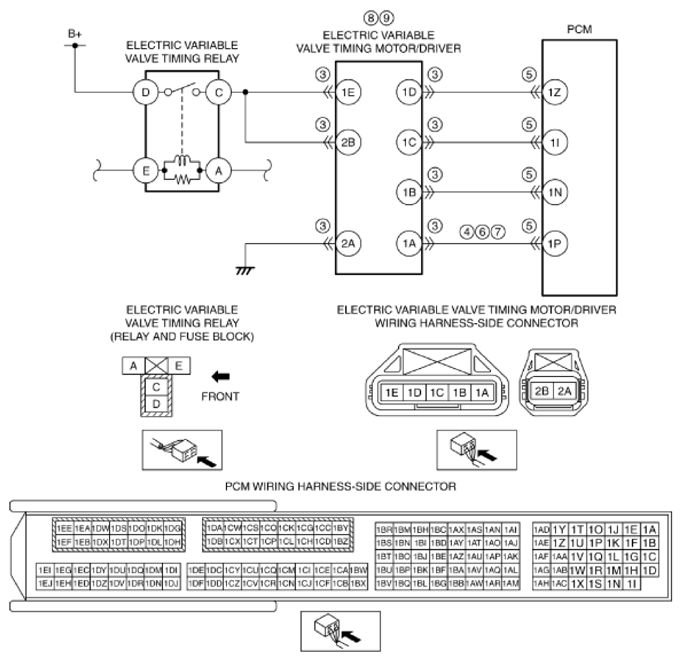

- Short to ground in wiring harness between electric variable valve timing motor/driver terminal 1A and PCM terminal 1P
- PCM connector or terminals malfunction
- Short to power supply in wiring harness between electric variable valve timing motor/driver terminal 1A and PCM terminal 1P
- Open circuit in wiring harness between electric variable valve timing motor/driver terminal 1A and PCM terminal 1P
- Electric variable valve timing driver malfunction
- Electric variable valve timing motor malfunction
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
Related PIDs
| Item (definition) |
Unit/Condition |
Definition |
Condition/Specification (Reference) |
| VT_IN_ACT |
° (deg) |
Actual intake variable valve timing control
- Advance amount from max retard position
|
|
| VT_IN_DES |
° (deg) |
Target intake variable valve timing control
- Advance amount from max retard position
|
|
