DTC U0074-00; Can System Communication Error (Local Can Between Pcm And TCM): Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC U0074:00	CAN system communication error (local CAN between PCM and TCM)
DETECTION CONDITION	Malfunction in CAN bus communication line. Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

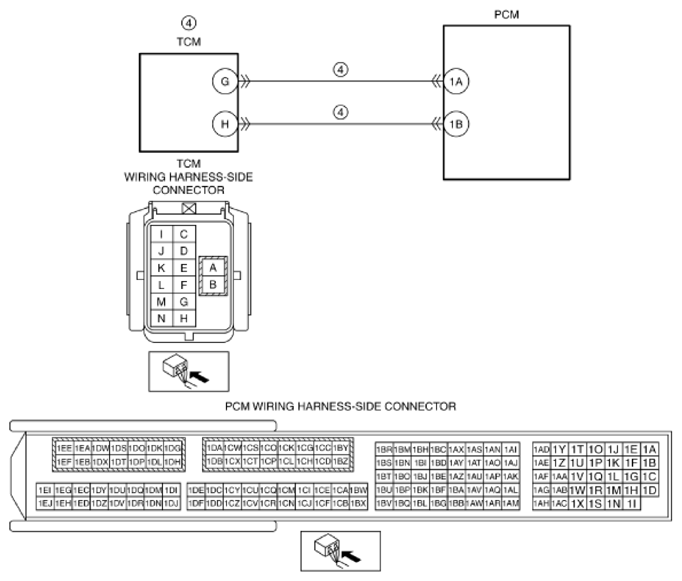

POSSIBLE CAUSE	CAN communication line malfunction between PCM and TCM (local CAN between PCM and TCM) TCM terminal G-PCM terminal 1A TCM terminal H-PCM terminal 1B TCM DTC is stored. PCM malfunction TCM malfunction

Repeatability Verification Procedure

Clear the DTC from the PCM memory using the M-MDS. (See CLEARING DTC [PCM (SKYACTIV-G 2.5T)] .)
Start the engine.
