Weatherstrip Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the weatherstrip to the glass panel with the joint part of the weatherstrip assembled to the vehicle rear side.

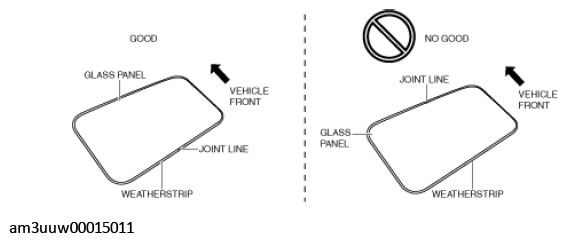

    Fig 1: Installing Weatherstrip With Joint Part To Glass Panel
    G11452962Courtesy of MAZDA MOTORS CORP.
