Sunshade Disassembly Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

To prevent scratches or damage, affix protective tape to the position shown in the figure of the sunshade.

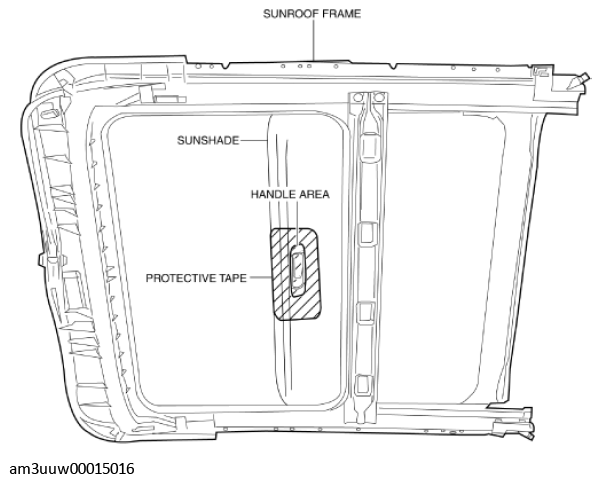

Fig 1: Affixing Protective Tape To Sunshade Of Sunroof Frame
Courtesy of MAZDA MOTORS CORP.
Pull the sunshade in the direction of the arrow in the order of (1), (2) and remove it.
CAUTION:
- The sunshade may contact the sunroof frame and the handle area may be damaged. Remove the sunshade by sliding it in the direction of the arrow (2) shown in the figure while lifting it in the direction of the arrow (1).

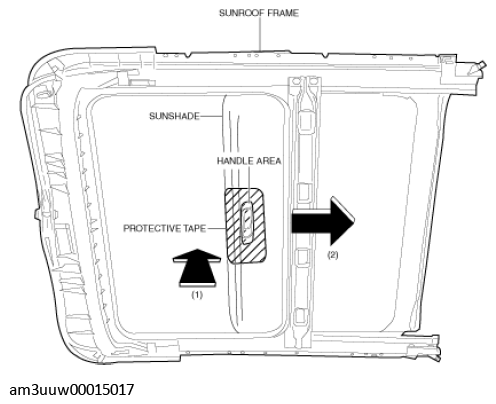

Fig 2: Removing Sunshade From Sunroof Frame
Courtesy of MAZDA MOTORS CORP.
