On-Board Diagnostic Wiring Diagram: SAS Control Module (Standard Deployment Control System)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

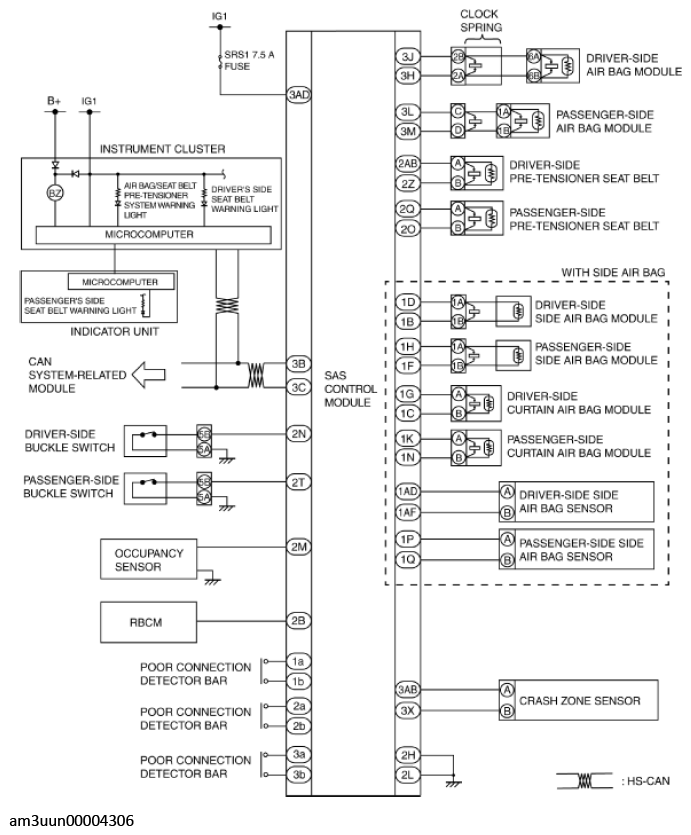

Fig 1: SAS Control Module - On-Board Diagnostic Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: SAS Control Module - On-Board Diagnostic Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
