Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition ON (engine off or on).
  2. Fully turn the steering wheel in the opposite direction of the side the front fog light is being removed.
  3. Switch the ignition off.
  4. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  5. Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  6. Disconnect the connector.

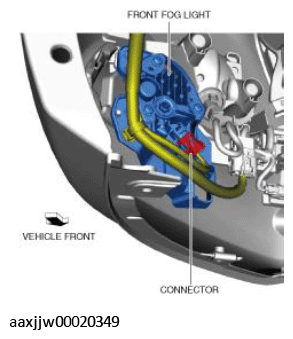

    Fig 1: Disconnecting Front Fog Light Connector
    G11449485Courtesy of MAZDA MOTORS CORP.
  7. Remove the screws.
    Fig 2: Locating Front Fog Light Screws
    G11449486Courtesy of MAZDA MOTORS CORP.
  8. Remove the clip.

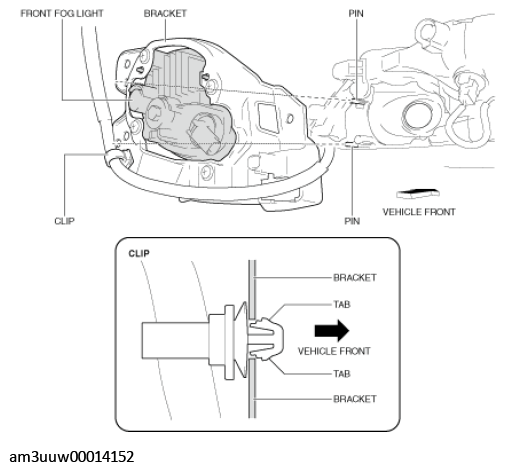

    Fig 3: Removing Front Fog Light Clip
    G11449487Courtesy of MAZDA MOTORS CORP.
  9. Remove the front fog light and the bracket as a single unit.
  10. Remove the screws.

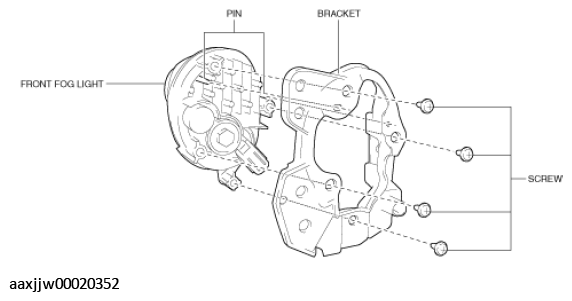

    Fig 4: Removing Front Fog Light
    G11449488Courtesy of MAZDA MOTORS CORP.
  11. Remove the bracket.
  12. Remove the front fog light.
  13. Install in the reverse order of removal.
  14. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)
