Lighting Systems Location Index: Interior

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

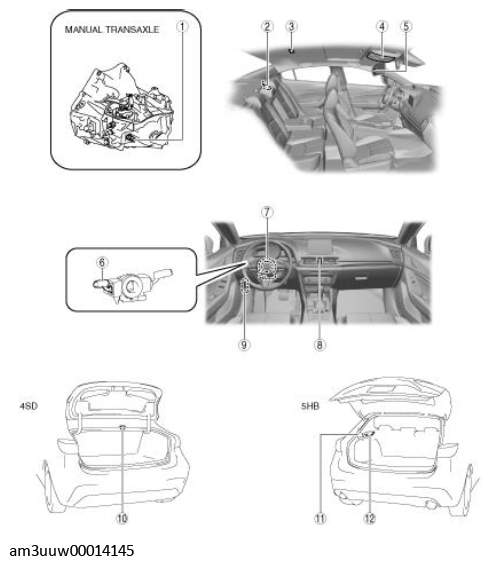

Fig 1: Interior Lighting System Component Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH INSPECTION .)
2	Brake light unit (Sedan (4SD)) (with smart brake support (SBS)) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION .) (See BRAKE LIGHT UNIT INSPECTION .)
3	Rear map light (with rear map light) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION .) (See REAR MAP LIGHT REMOVAL/INSTALLATION .)
4	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT MAP LIGHT INSPECTION .)
5	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION .) (See VANITY MIRROR ILLUMINATION INSPECTION .)
6	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .) (See LIGHT SWITCH INSPECTION .) (See FRONT FOG LIGHT SWITCH INSPECTION .)
7	Steering angle sensor (with adaptive front lighting system (AFS) or smart city brake support (SCBS)) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION .) (See STEERING ANGLE SENSOR INSPECTION .)
8	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .) (See HAZARD WARNING SWITCH INSPECTION .)
9	Auto leveling control module (with headlight auto leveling system) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
10	Trunk compartment light (Sedan (4SD)) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .)
11	Brake light unit (Hatchback (5HB)) (with smart brake support (SBS)) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION .) (See BRAKE LIGHT UNIT INSPECTION .)
12	Cargo compartment light (Hatchback (5HB)) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT INSPECTION .)
