Washer Fluid-Level Sensor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Disconnect the connector.
World manufacturer identification "JM1"

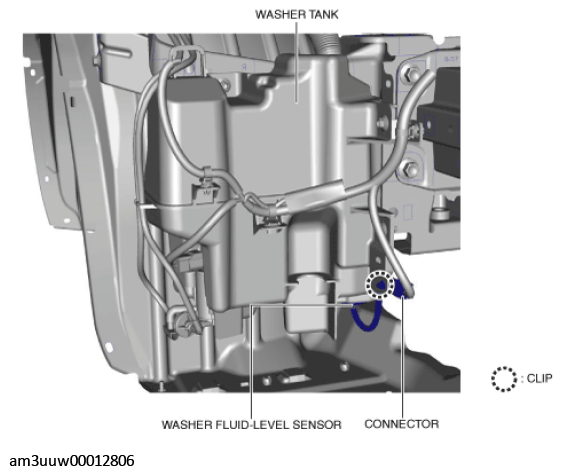

Fig 1: Washer Fluid-Level Sensor, Washer Tank And Connector - World Manufacturer Identification "JM1"
Courtesy of MAZDA MOTORS CORP.

World manufacturer identification "3MZ"

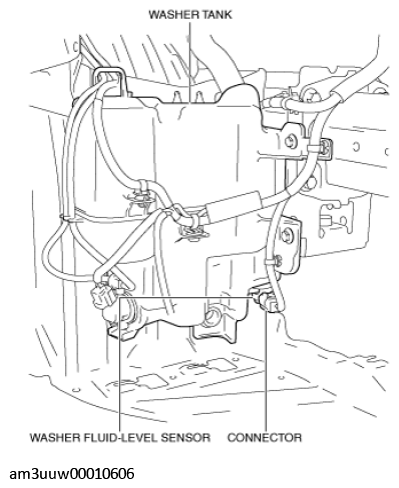

Fig 2: Washer Fluid-Level Sensor, Washer Tank And Connector - World Manufacturer Identification "3MZ"
Courtesy of MAZDA MOTORS CORP.
Remove the washer fluid-level sensor.

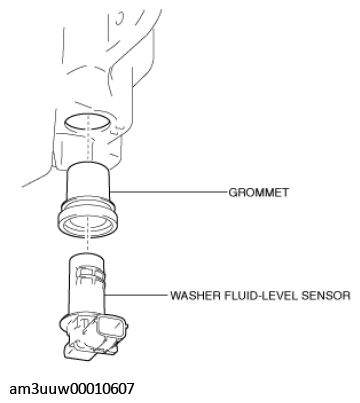

Fig 3: Washer Fluid-Level Sensor And Grommet
Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
