Barometric Pressure (BARO) Sensor Inspection
PID/DATA Monitor Inspection
NOTE:
- The BARO sensor is built into the PCM. When replacing the BARO sensor, replace the PCM.
- Connect the M-MDS to the DLC-2.
- Switch the ignition ON (engine off).
- Verify that the BARO sensor output value (PID: BARO) is within the specification. (See ON-BOARD DIAGNOSTIC TEST
). (See PCM INSPECTION ).
- If not as specified, replace the PCM. (See PCM REMOVAL/INSTALLATION ).

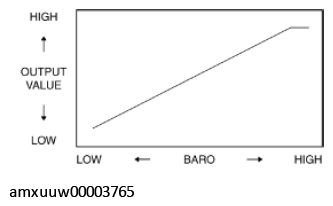

Specification (Reference)
