On-Board Diagnostic Wiring Diagram [SAS Control Module (Two-Step Deployment Control System)]
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

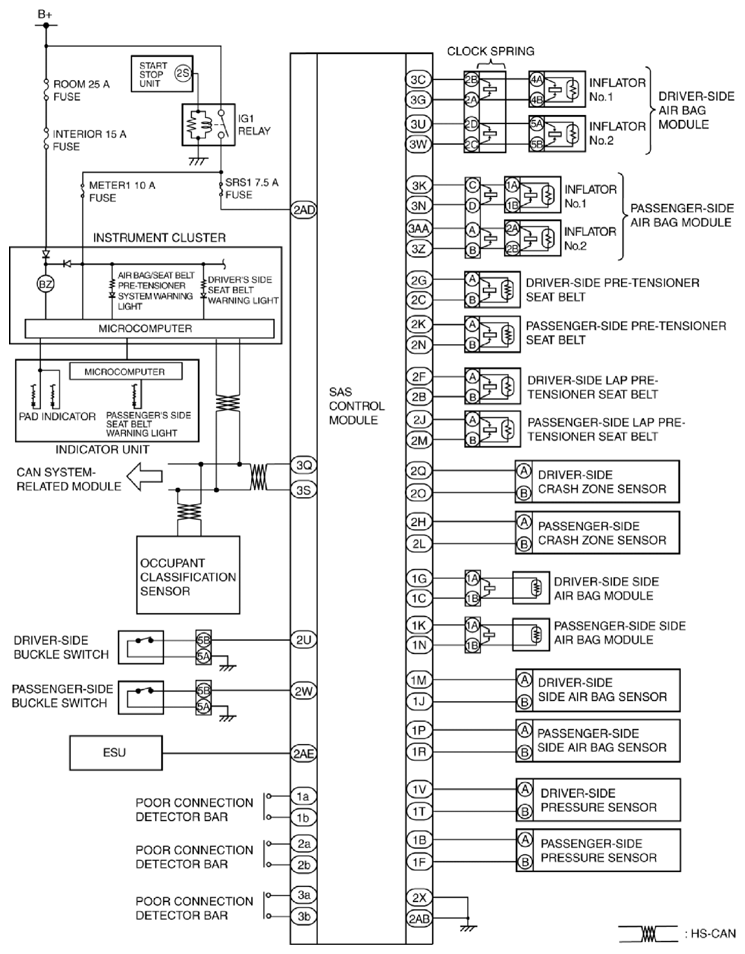

Fig 1: SAS Control Module On-Board Diagnostic Wiring Diagram (Two-Step Deployment Control System)
Courtesy of MAZDA MOTORS CORP.

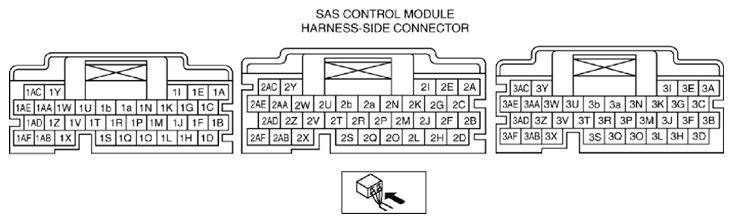

Fig 2: Identifying SAS Control Module Harness-Side Connector
