Net Installation Note

  1. Insert a precision flathead screwdriver in the position shown in the figure.

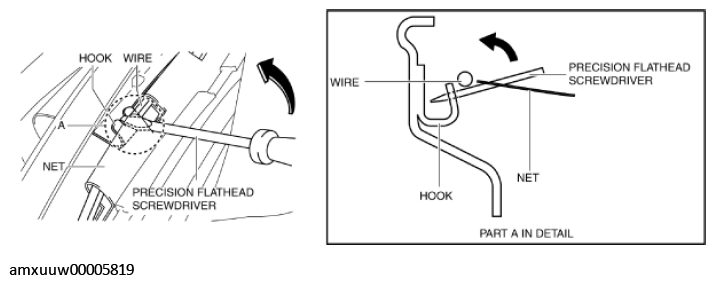

    Fig 1: Installing Wire Onto Hook
    G11278796Courtesy of MAZDA MOTORS CORP.
  2. Move the precision flathead screwdriver in the direction of the arrow shown in the figure and install the wire onto the hook.
