TWC Installation Note

  1. Temporarily remove the installed tunnel member when installing the power plant frame.

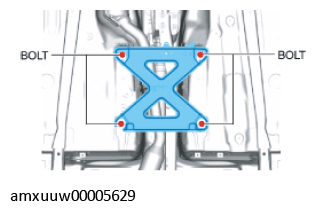

    Fig 1: Identifying Tunnel Member And Bolts
    G11275817Courtesy of MAZDA MOTORS CORP.
  2. Install the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
